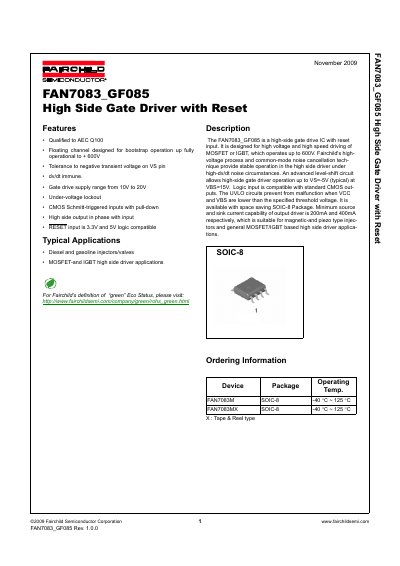

FAN7083_GF085 is a high-side gate driver IC with reset input from Fairchild. The device is designed for high voltage and high speed driving of MOSFET or IGBT, which operates up to 600V. Fairchild's high- voltage process and common-mode noise cancellation tech- nique provide stable operation in the high side driver under high-dv/dt noise circumstances. An advanced level-shift circuit allows high-side gate driver operation up to VS=-5V (typical) at VBS=15V. Logic input is compatible with standard CMOS out- puts. The UVLO circuits prevent from malfunction when VCC and VBS are lower than the specified threshold voltage. It is available with space saving SOIC-8 Package.
The FAN7083_GF085 is a high-side gate drive IC designed for driving MOSFETs or IGBTs at voltages up to 600V. It features a reset input compatible with 3.3V and 5V logic, ensuring stable operation under high-dv/dt noise conditions. The device utilizes an advanced level-shift circuit allowing operation up to VS=-5V and includes under-voltage lockout (UVLO) circuits to prevent malfunction when supply voltages are low.
| Operating Voltage (VBS) | 10V to 20V |
|---|---|
| Maximum Voltage (VS) | 600V |
| Output Source Current | 200mA |
| Output Sink Current | 400mA |
| Package Type | SOIC-8 |
The device is designed to operate up to 600V.
The gate drive supply range is from 10V to 20V.
Yes, the RESET input is 3.3V and 5V logic compatible.
