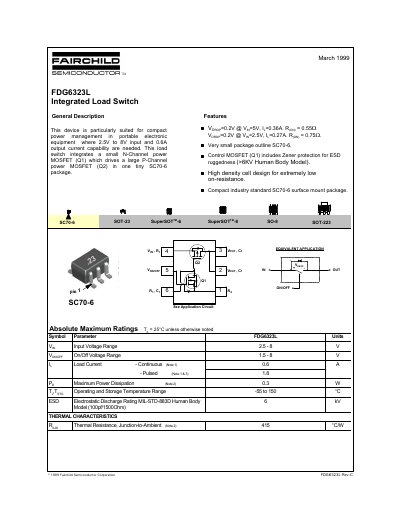

FDG6323L is an integrated load switch produced by Fairchild Semiconductor. It is suitable for compact power management in portable electronic equipment where 2.5V to 8V input and 0.6A output current capability are needed.
The FDG6323L is an integrated load switch designed for power management in portable electronic equipment. It combines a small N-Channel MOSFET and a large P-Channel MOSFET into a single SC70-6 package. The device is suited for applications requiring 2.5V to 8V input and 0.6A output current capability.
| Input Voltage Range | 2.5V to 8V |
|---|---|
| Load Current (Continuous) | 0.6 A |
| Load Current (Pulsed) | 1.8 A |
| Maximum Power Dissipation | 0.3 W |
| Operating Temperature Range | -55 to 150 °C |
| ESD Rating | 6 kV |
| Thermal Resistance (Junction-to-Ambient) | 415 °C/W |
The input voltage range is 2.5V to 8V.
The maximum continuous load current is 0.6A.
It uses a very small SC70-6 surface mount package.
