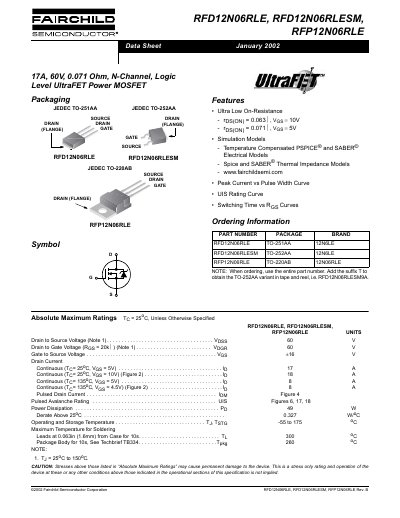

RFD12N06RLE, RFD12N06RLESM, RFP12N06RLE 17A, 60V, 0.071 Ohm, N-Channel, Logic Level UltraFET Power MOSFET. This product has ultra low on-resistance, temperature compensated PSPICE® and SABER© electrical models, Spice and SABER© thermal impedance models.
The document is a product datasheet for the Fairchild Semiconductor RFD12N06RLE, RFD12N06RLESM, and RFP12N06RLE models. These are N-channel Logic Level UltraFET power MOSFETs featuring ultra-low on-resistance values of 0.063 Ohms at VGS=10V and 0.071 Ohms at VGS=5V. This manual is written in Chinese.
| Drain to Source Voltage (V DSS) | 60 V |
|---|---|
| Power Dissipation (TO-251AA, TO-252AA) | 3.06°C/W |
| Operating and Storage Temperature | -55 to 175°C |
