NDT014L is an N-channel logic level enhancement mode power field effect transistor with extremely low RDS(ON), high power and current handling capability in a widely used surface mount package.
The document describes the Fairchild NDT014L, an N-Channel logic level enhancement mode power field effect transistor produced using high cell density DMOS technology. These devices are designed for low voltage applications such as DC motor control and DC/DC conversion where fast switching and resistance to transients are required.

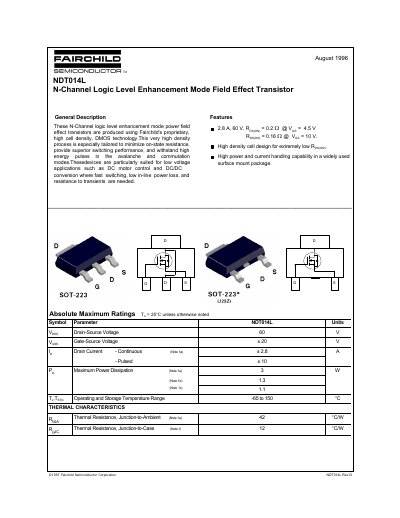

The datasheet provides absolute maximum ratings, electrical characteristics including on-resistance and breakdown voltage, dynamic parameters like capacitance, and thermal characteristics. It also includes typical performance curves and detailed mechanical drawings for the SOT-223 package.
| Drain-Source Voltage (Vdss) | 60 V |
|---|---|
| Maximum Power Dissipation | 3 W |
| Operating Temperature Range | -65 to 150 °C |
| Static Drain-Source On-Resistance (Typical) | 0.2 Ohms @ Vgs=4.5V, Id=28A |
| Unit Weight | 0.99 grams |
The absolute maximum power dissipation is 3 W.
Standard reels contain 2,500 units per 13" diameter reel.
