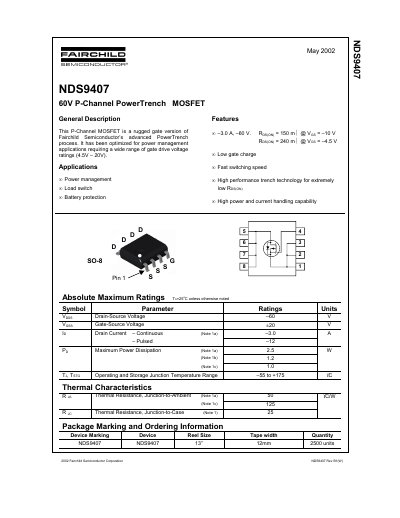

The NDS9407 60V P-Channel PowerTrench MOSFET is a rugged gate version of Fairchild Semiconductor’s advanced PowerTrench process. It has been optimized for power management applications requiring a wide range of gate drive voltage ratings (4.5V – 20V).
The NDS9407 is a rugged P-Channel MOSFET utilizing Fairchild Semiconductor's advanced PowerTrench process. It is specifically optimized for power management applications requiring a wide range of gate drive voltage ratings, from 4.5V to 20V. Key features include a -3.0 A continuous drain current, -60 V drain-source voltage, and low on-resistance.
| Drain-Source Voltage | -60 V |
|---|---|
| Gate-Source Voltage | +20 V |
| Operating Junction Temperature Range | -55 to +175 °C |
The device is optimized for power management applications, specifically serving as a load switch and for battery protection.
The MOSFET is optimized for applications requiring a wide range of gate drive voltage ratings from 4.5V to 20V.
The maximum continuous drain current rating is -3.0 A.
