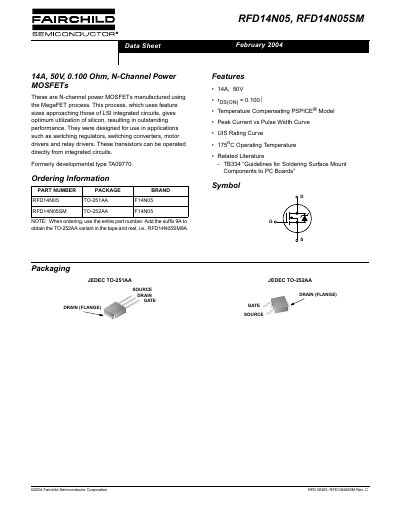

This datasheet provides the specifications of RFD14N05 and RFD14N05SM, including rated voltage, packaging type, power dissipation, etc.
This document is a datasheet for the Fairchild Semiconductor RFD14N05 (and RFD14NO5SM) N-channel power MOSFETs. These devices are manufactured using the MegaFET process, which utilizes feature sizes approaching those of LSI integrated circuits to achieve outstanding performance.
The transistors are designed for applications such as switching regulators, switching converters, motor drivers, and relay drivers, and can be operated directly from integrated circuits. The datasheet provides absolute maximum ratings, electrical specifications, typical performance curves, test circuit diagrams, and a PSPICE electrical model.
| Continuous Drain Current | 14 A |
|---|---|
| Operating Temperature | -55 to 175 °C |
These transistors were designed for use in switching regulators, switching converters, motor drivers, and relay drivers.
Yes, these transistors can be operated directly from integrated circuits.
The device supports an operating temperature of 175°C.
