QFET QFET QFET QFET is a lead-free solder wire alternative that has high performance, low cost, easy to process and environmentally friendly features.

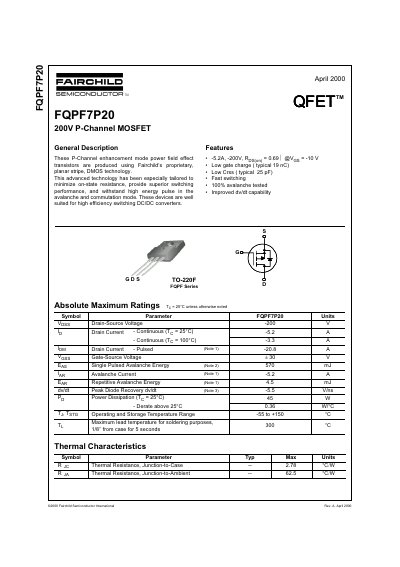

The document describes the Fairchild FQPF7P20, a P-Channel enhancement mode power MOSFET produced using proprietary planar stripe DMOS technology. The device is optimized to minimize on-state resistance and provide superior switching performance while withstanding high energy pulses in avalanche and commutation modes.
Key specifications include a drain-source voltage of -200V, a continuous drain current of -5.2A at 25°C, and an on-resistance (Rds(on)) of 0.692 Ohms at Vgs = -10V. The component is housed in a TO-220F package.
| Drain-Source Voltage | -200 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | -5.2 A |
| Package Type | TO-220F |
| Operating Temperature Range | -55 to +150 °C |
These devices are well suited for high efficiency switching DC/DC converters.
Yes, the FQPF7P20 is 100% avalanche tested.
