FQPF33N10L 100V LOGIC N-Channel MOSFET is a product produced by Fairchild Semiconductor. It uses Fairchild's proprietary planar stripe DMOS technology, which has the advantages of low on-state resistance, superior switching performance, high energy pulse tolerance, etc. This product is suitable for low voltage applications such as high efficiency switching DC/DC converters and DC motor control.

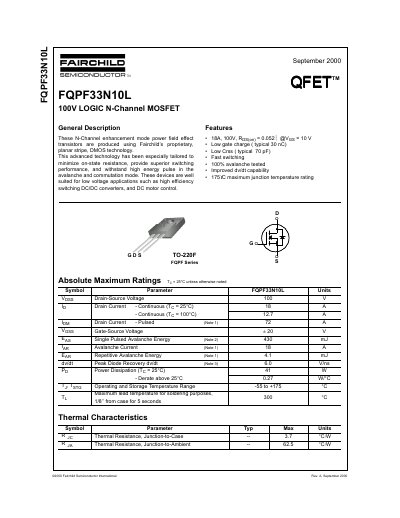

This document describes the FQPF33N10L, an N-Channel enhancement mode power field effect transistor produced using Fairchild's proprietary planar stripe DMOS technology. The device is designed to minimize on-state resistance and provide superior switching performance for low voltage applications such as high efficiency switching DC/DC converters and DC motor control.
The datasheet provides absolute maximum ratings, electrical characteristics including off and on characteristics, dynamic parameters like capacitance and switching times, and typical characteristic curves. It also includes test circuit diagrams and package dimensions for the TO-220F case.
| Drain-Source Voltage | 100 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 18 A |
| Gate Threshold Voltage | 1.0 to 2.0 V |
| Static Drain-Source On-Resistance (Vgs=10V, Id=9A) | 0.039 to 0.052 Ohm |
| Total Gate Charge | Typical 30 nC |
| Maximum Junction Temperature | 175°C |
The device is available in a TO-220F package.
Yes, the text states these devices are well suited for low voltage applications such as high efficiency switching DC/DC converters.
