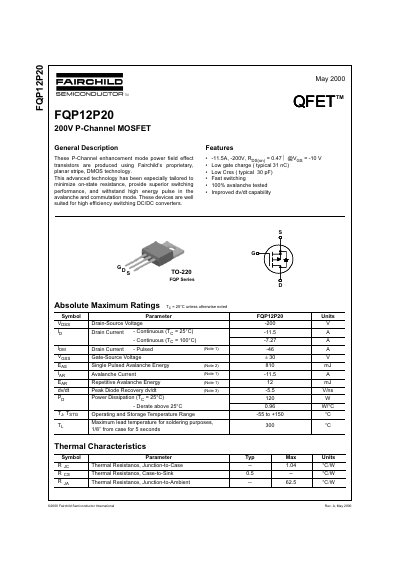

This document provides design specifications and electrical characteristics for the Fairchild FQP12P20. The device utilizes proprietary planar stripe DMOS technology to minimize on-state resistance and provide superior switching performance, making it well-suited for high efficiency switching DC/DC converters.
The datasheet details absolute maximum ratings, thermal characteristics, and typical operating curves including on-resistance variation, capacitance, and safe operating areas. It also includes package dimensions for the TO-220 case.
| Drain-Source Voltage | -200 V |
|---|---|
| Pulsed Drain Current | -46 A |
| Power Dissipation (Tc = 25°C) | 120 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
