The FQP13N10L 100V LOGIC N-Channel MOSFET is a high performance MOSFET device produced by Fairchild. It features low RDS(on), low gate charge, low Crss, fast switching, etc. It is suitable for applications such as high efficiency switching DC/DC converters and DC motor control.

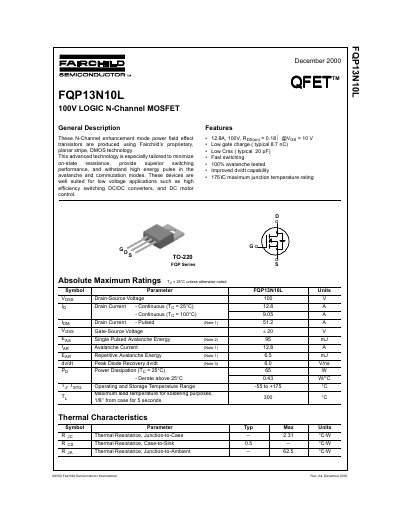

This document is a datasheet for the Fairchild Semiconductor FQP13N10L, a 100V Logic N-Channel MOSFET produced using proprietary planar stripe DMOS technology. The device is designed for low voltage applications such as high efficiency switching DC/DC converters and DC motor control, featuring a maximum junction temperature rating of 175°C and a TO-220 package.
| Drain-Source Voltage | 100 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 12.8 A |
| Continuous Drain Current (Tj = 100°C) | 9.05 A |
| Pulsed Drain Current | 51.2 A |
| Power Dissipation (Tj = 25°C) | 65 W |
| Maximum Junction Temperature | 175°C |
| Drain-Source Breakdown Voltage | 100 V |
| Gate Threshold Voltage | 1.0 V to 2.0 V |
| Static Drain-Source On-Resistance (Vgs=10V) | 0.142 Ohm to 0.18 Ohm |
The maximum junction temperature rating is 175°C.
The continuous drain current at 25°C is 12.8 A.
