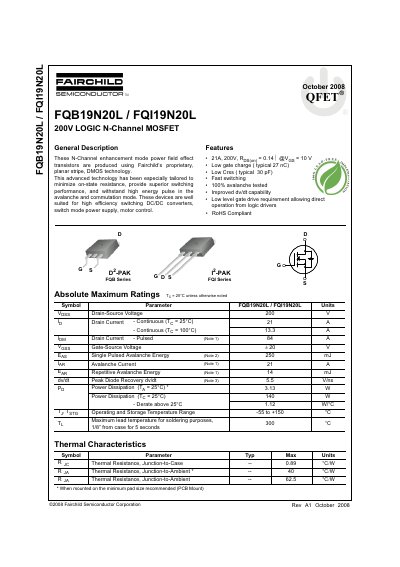

This document is a technical datasheet for the Fairchild Semiconductor FQB19N20L and FQI19N20L devices. These are N-Channel enhancement mode power field effect transistors produced using proprietary planar stripe, DMOS technology. The devices are designed to minimize on-state resistance and provide superior switching performance while withstanding high energy pulses in avalanche and commutation modes.
| Drain-Source Voltage | 200 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 21 A |
| On-Resistance (Vgs = 10 V, Id = 10.5A) | 0.142 Ohm |
| Gate Charge (Typical) | 27 nC |
| Reverse Transfer Capacitance (Typical) | 30 pF |
| Operating and Storage Temperature Range | -55 to +150 °C |
