The FDT3612 is a 100V N-channel MOSFET that utilizes high performance trench technology to achieve extremely low RDS(ON). This results in a MOSFET that has fast switching speed and low gate charge, making it ideal for use in DC/DC converters and motor driving applications.

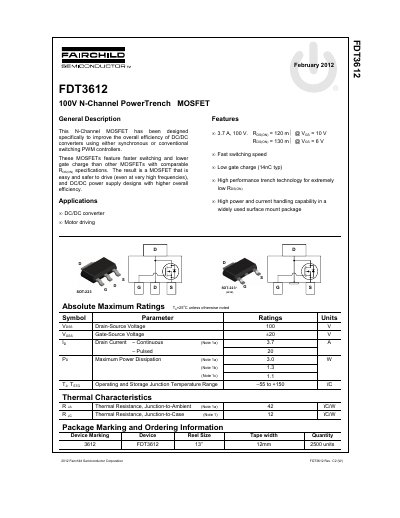

The document describes the Fairchild FDT3612, a 100V N-Channel MOSFET designed to improve efficiency in DC/DC converters and motor driving applications. Key features include fast switching speeds, low gate charge (14nC typical), and high performance trench technology for extremely low on-resistance.
| Drain-Source Voltage | 100 V |
|---|---|
| Continuous Drain Current | 3.7 A |
| Pulsed Drain Current | 20 A |
| Maximum Power Dissipation | 3.0 W |
| Gate Charge | 14 nC typ |
| Package Type | SOT-223 |
The device is designed specifically for DC/DC converters and motor driving.
No, the products are not authorized for use as critical components in life support devices or systems without express written approval.
