The FDS6676AS 30V N-Channel PowerTrench® SyncFET™ MOSFET is a high performance 30V N-channel MOSFET with extremely low RDS(ON) and fast switching characteristics. It includes an integrated Schottky diode using Fairchild's monolithic SyncFET technology.

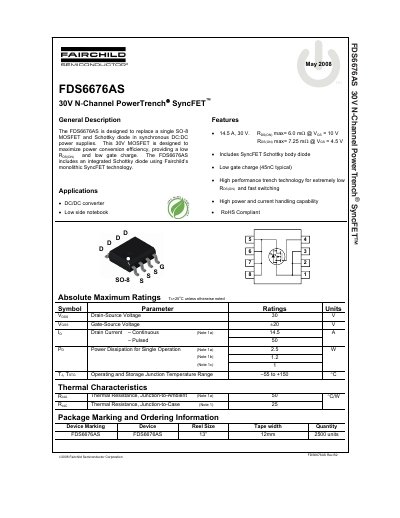

The document describes the Fairchild FDS6676AS, a 30V N-Channel MOSFET designed to replace a single SO-8 MOSFET and Schottky diode in synchronous DC/DC power supplies. It utilizes Fairchild's monolithic SyncFET technology to maximize power conversion efficiency by providing low on-resistance and low gate charge.
| Drain-Source Voltage | 30 V |
|---|---|
| Gate-Source Voltage | +20 V |
| Pulsed Drain Current | 50 A |
| Operating Junction Temperature Range | -55 to +150 °C |
| On-Resistance (Typical @ Vgs=10V) | 6.0 mΩ |
| Total Gate Charge (Typical @ Vgs=10V) | 45 nC |
It is designed to replace a single SO-8 MOSFET and Schottky diode in synchronous DC/DC power supplies.
Yes, it includes an integrated Schottky diode using Fairchild's monolithic SyncFET technology.
Yes, the datasheet lists the device as RoHS Compliant.
