The FDS6912 is a dual N-channel logic level PWM optimized PowerTrench MOSFET featuring faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications.

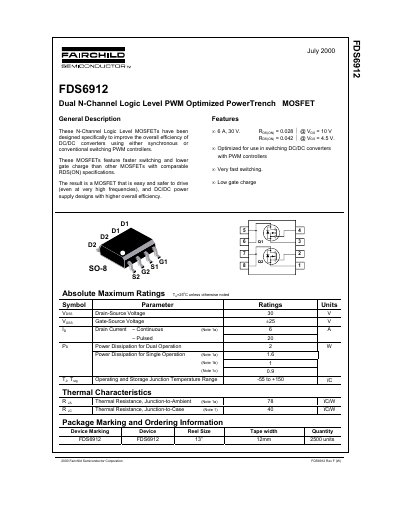

The document describes the Fairchild FDS6912, a dual N-Channel Logic Level MOSFET designed specifically to improve efficiency in DC/DC converters using synchronous or conventional switching PWM controllers. Key features include fast switching speeds and low gate charge compared to other devices with comparable on-resistance specifications.
| Drain-Source Voltage | 30 V |
|---|---|
| Gate-Source Voltage | +/-25 V |
| Pulsed Drain Current | 20 A |
| Power Dissipation (Dual) | 2 W |
| Operating Junction Temperature Range | -55 to +150 °C |
| Static Drain-Source On-Resistance @ Vgs=10V | 0.024 - 0.028 Ohm |
| Total Gate Charge @ Vgs=10V | 7 - 10 nC |
It is designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.
The device features faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications.
The maximum continuous drain current for dual operation is 6 A.
