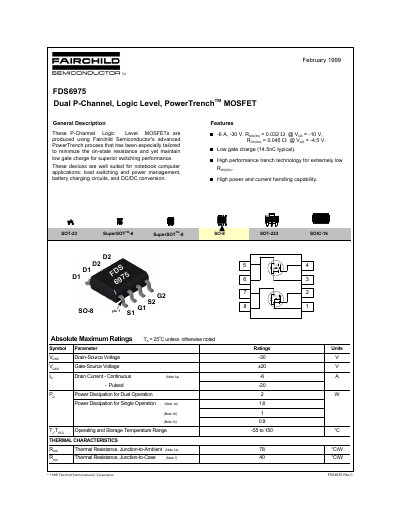

FDS6975 is a dual P-channel logic level MOSFET produced by Fairchild Semiconductor. It is made using the advanced PowerTrench process, which has extremely low on-state resistance and low gate charge, making it ideal for notebook computer applications such as load switching and power management, battery charging circuits, and DC/DC conversion.
The FDS6975 is a dual P-Channel Logic Level MOSFET produced using Fairchild Semiconductor's advanced PowerTrench process. These devices are designed to minimize on-state resistance while maintaining low gate charge for superior switching performance. They are well-suited for notebook computer applications, including load switching, power management, battery charging circuits, and DC/DC conversion.
| Drain-Source Voltage | -30 V |
|---|---|
| Gate-Source Voltage | +20 V |
| Continuous Drain Current (Dual) | 6 A |
| Pulsed Drain Current | -20 A |
| Power Dissipation (Dual) | 2 W |
| Operating Temperature Range | -55 to 150 °C |
| Thermal Resistance (Junction-to-Ambient) | 78 °C/W |
| Gate Threshold Voltage | 3 V |
| Static Drain-Source On-Resistance | 0.032 Ω |
| Total Gate Charge | 14.5 nC |
These devices are well suited for notebook computer applications: load switching and power management, battery charging circuits, and DC/DC conversion.
The maximum continuous drain current is 6 A.
The operating and storage temperature range is -55 to 150 °C.
