The FDS6986AS is designed to replace two single SO-8 MOSFETs and Schottky diode in synchronous DC:DC power supplies that provide various peripheral voltages for notebook computers and other battery powered electronic devices. FDS6986AS contains two unique 30V, N-channel, logic level, PowerTrench MOSFETs designed to maximize power conversion efficiency. The high-side switch (Q1) is designed with specific emphasis on reducing switching losses while the low- side switch (Q2) is optimized to reduce conduction losses. Q2 also includes an integrated Schottky diode using Fairchild’s monolithic SyncFET technology.
The FDS6986AS is a dual N-channel, logic-level, PowerTrench MOSFET designed to replace two single MOSFETs and a Schottky diode in synchronous DC-DC power supplies for notebook computers. It contains two unique 30V switches: the high-side switch (Q1) is optimized to reduce switching losses, while the low-side switch (Q2) is optimized to reduce conduction losses and includes an integrated Schottky body diode using Fairchild's SyncFET technology.

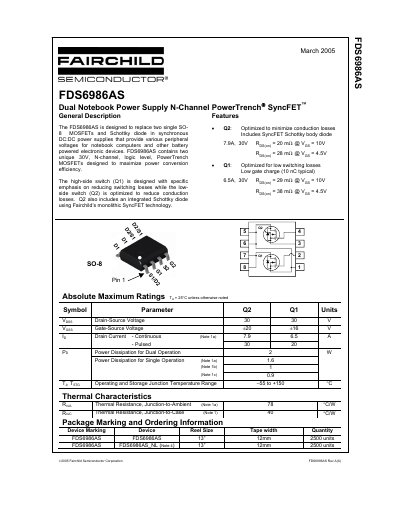

The document provides absolute maximum ratings, electrical characteristics, and typical performance curves for both switches. Key specifications include a drain-source breakdown voltage of 30V, continuous drain currents of 7.9A for Q2 and 6.5A for Q1, and a total gate charge of 10 nC typical. The device is available in an SO-8 package.
| Drain-Source Voltage | 30 V |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
| Total Gate Charge (Typical) | 10 nC |
| Power Dissipation (Dual Operation) | 2 W |
Yes, the low-side switch (Q2) includes an integrated Schottky diode using Fairchild's monolithic SyncFET technology.
The operating and storage junction temperature range is from -55 to +150 °C.
