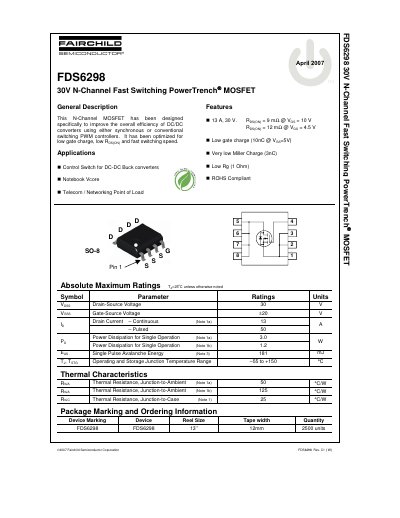

The FDS6298 is a 30V N-Channel Fast Switching PowerTrench MOSFET from Fairchild Semiconductor Corporation. It is specifically designed to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. The device has been optimized for low gate charge, low RDS(ON) and fast switching speed.
The FDS6298 is an N-Channel MOSFET designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. It is optimized for low gate charge, low on-resistance, and fast switching speed, making it suitable for applications such as control switches for DC-DC buck converters, notebook Vcore, and telecom point-of-load power supplies.
| Drain-Source Voltage | 30 V |
|---|---|
| Gate-Source Voltage | +20 V |
| Continuous Drain Current | 13 A |
| Pulsed Drain Current | 50 A |
| On-Resistance | 9 mΩ @ Vgs = 4.5 V |
| Operating Temperature Range | -55 to +150 °C |
It is designed for control switches in DC-DC Buck converters, notebook Vcore, and telecom/networking point-of-load applications.
Yes, the device is RoHS compliant.
The single pulse avalanche energy is 181 mJ.
