This document describes the FDS4672A model N-Channel PowerTrench MOSFET, which has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers by optimizing low gate charge, low RDS(ON), and fast switching speed.

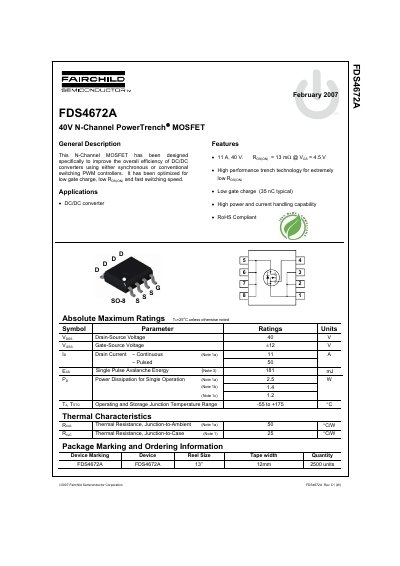

This document is a datasheet for the Fairchild Semiconductor FDS4672A, a 40V N-Channel PowerTrench MOSFET. The device is designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. It features high-performance trench technology, low gate charge, and fast switching speed.
| Drain-Source Voltage | 40 V |
|---|---|
| Gate Charge | 35 nC typical |
| Operating Junction Temperature Range | -55 to +175 °C |
The device supports a continuous drain current of 11 A.
The maximum drain-source voltage is 40 V.
The typical gate charge is 35 nC.
