This document describes the absolute maximum ratings of an electronic component, including voltage, current, and temperature parameters.

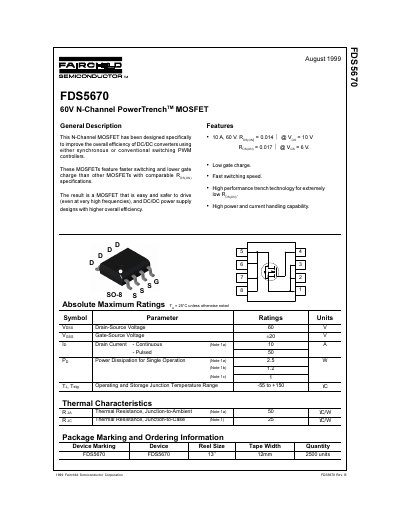

This document is a datasheet for the Fairchild Semiconductor FDS5670, a 60V N-Channel PowerTrench MOSFET designed to improve the efficiency of DC/DC converters. The device features a 10A continuous drain current, low gate charge, and fast switching speeds.
| Drain-Source Voltage | 60 V |
|---|---|
| Operating Junction Temperature | -55 to +150 °C |
The maximum drain-source voltage is 60 V.
The device supports a continuous drain current of 10 A.
The maximum power dissipation for single operation is 25 W.
The device operates within a junction temperature range of -55 to +150 °C.
