This document introduces the datasheet of FDS5680 device, including the device's package size, pin arrangement, maximum working voltage, maximum working current, maximum power dissipation, working temperature range, etc.

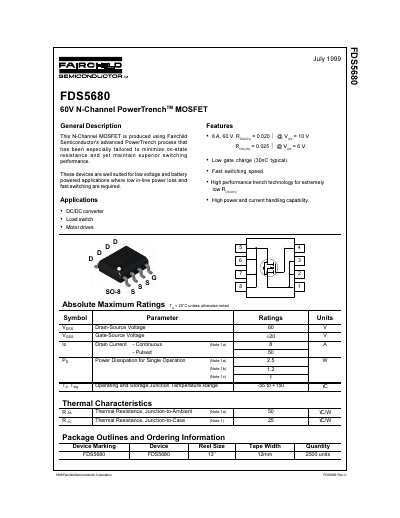

This document is a datasheet for the Fairchild Semiconductor FDS5680, a 60V N-Channel PowerTrench MOSFET. The device is designed using an advanced PowerTrench process to minimize on-state resistance while maintaining superior switching performance, making it suitable for low voltage and battery-powered applications.
| Drain-Source Voltage | 60 V |
|---|---|
| Gate-Source Voltage | +20 V |
| Pulsed Drain Current | 50 A |
| Operating Junction Temperature Range | -55 to +150 °C |
| On-Resistance (Typical) | 0.020 Ω |
| Total Gate Charge | 30 nC |
| Input Capacitance | 1850 pF |
| Output Capacitance | 290 pF |
| Turn-On Delay Time | 13 ns |
| Turn-Off Delay Time | 16 ns |
| Maximum Continuous Drain-Source Diode Forward Current | 21 A |
The device is well suited for DC/DC converters, load switches, and motor drives.
The operating and storage junction temperature range is from -55 to +150 °C.
The static drain-source on-resistance is 0.020 Ω at 10V and 8A.
