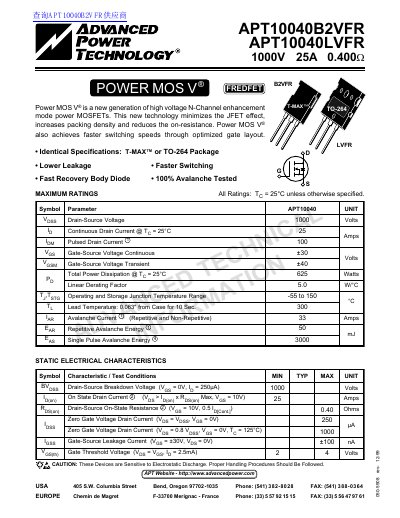

ADVANCED POWER TECHNOLOGY APT10040B2VFR APT10040LVFR 1000V 25A 0.400 handbook

This is a technical datasheet for APT10040B2VFR, including maximum ratings, static electrical characteristics, etc.

Brand: Advanced
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 38 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: CE55179787B2A2C51AAD06DC55D0DF8D
PDF: ADVANCED POWER TECHNOLOGY APT10040B2VFR APT10040LVFR 1000V 25A 0.400 handbook PDF

About this manual

This document provides technical information for the Advanced APT10040B2VFR Power MOSFET, a high voltage N-Channel enhancement mode device. It features low leakage current, fast switching speeds, and a fast recovery body diode. The datasheet covers maximum ratings, static electrical characteristics, dynamic characteristics, and thermal properties.

What's inside

Maximum Ratings
Static Electrical Characteristics
Dynamic Characteristics
Source-Drain Diode Ratings
Thermal Characteristics
Package Dimensions

Specifications

Package Type	TO-264 (L)

Frequently asked questions

Is the body diode fast recovery?

Yes, the device features a fast recovery body diode.

What is the maximum continuous drain current for the APT10040B2VFR at 25°C?

The maximum continuous drain current is 25 amps.
