APT10050JVFR is a Schottky diode from ISOTOP® company, rated at 1000V, maximum current 19A, maximum power 0.500 W, and package type SOT-227.

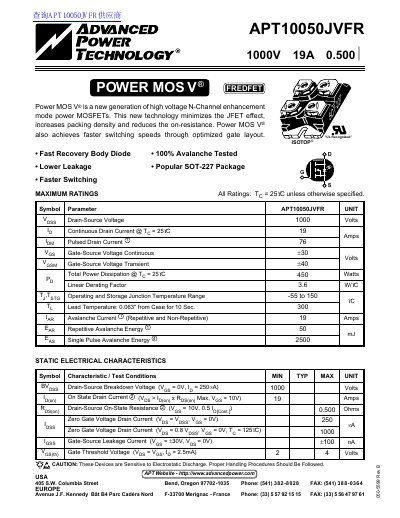

This document is a datasheet for the Advanced APT10050JVFR, a high voltage N-Channel enhancement mode Power MOS V device. This new technology minimizes the JFET effect, increases packing density, and reduces on-resistance while achieving faster switching speeds through optimized gate layout.
The datasheet provides maximum ratings, static electrical characteristics, dynamic characteristics, and thermal/package specifications. It includes typical output, transfer, and capacitance curves, as well as a package outline for the SOT-227 (ISOTOP) package.
| Drain-Source Voltage | 1000 Volts |
|---|---|
| Continuous Drain Current | 19 Amps |
| Pulsed Drain Current | 76 Amps |
| Total Power Dissipation | 450 Watts |
| Operating Junction Temperature Range | -55 to 150 C |
| Package Type | SOT-227 |
The maximum continuous drain current is 19 Amps when the temperature is 25°C.
The maximum total power dissipation is 450 Watts at a temperature of 25°C.
The maximum torque for device mounting screws is 13 lbs-in.
