ADVANCED POWER TECHNOLOGY EUROPE APT10050JVR 1000V 19A 0.500 handbook

APT10050JVR is a power device manufactured by ISOTOP company. Its rated voltage is 1000V, continuous current is 19A, and on-state resistance is 0.500 ohms.

Brand: Advanced
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 69 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: B7BB695705119496F25388174470ED67
PDF: ADVANCED POWER TECHNOLOGY EUROPE APT10050JVR 1000V 19A 0.500 handbook PDF

About this manual

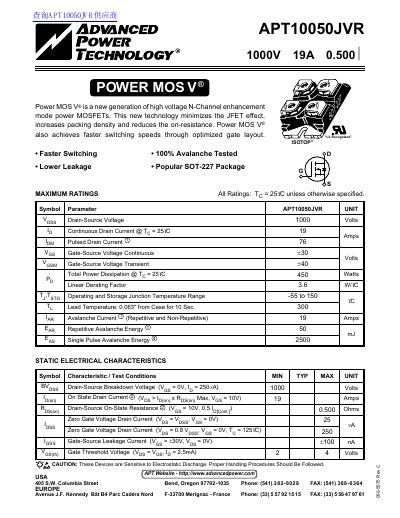

This document is a technical datasheet for the Advanced Power Technology (APT) APT10050JVR, a new generation of high voltage N-Channel enhancement mode power MOSFETs. The device features SOT-227 packaging and utilizes Power MOS V® technology to minimize JFET effects and reduce on-resistance.

What's inside

Maximum Ratings
Static Electrical Characteristics
Dynamic Characteristics
Source-Drain Diode Ratings
Thermal/Package Characteristics
Safe Operating Area

Specifications

Continuous Drain Current	19 Amps
Pulsed Drain Current	76 Amps
Package Type	SOT-227

Frequently asked questions

What is the maximum continuous drain current for this MOSFET at 25°C?

The device supports a continuous drain current of 19 Amps when the temperature is 25°C.

What is the maximum total power dissipation at room temperature?

The total power dissipation rating is 450 Watts when the junction temperature is 25°C.

What are the operating and storage junction temperature limits?

The device operates and stores within a junction temperature range of -55 to 150 C.
