FDP24N40 is a N-channel enhancement mode power field effect transistor produced by Fairchild. It has low on-state resistance, low gate charge, low gate input capacitance and fast switching. It is suitable for high efficiency switching power supplies and active power factor correction applications.

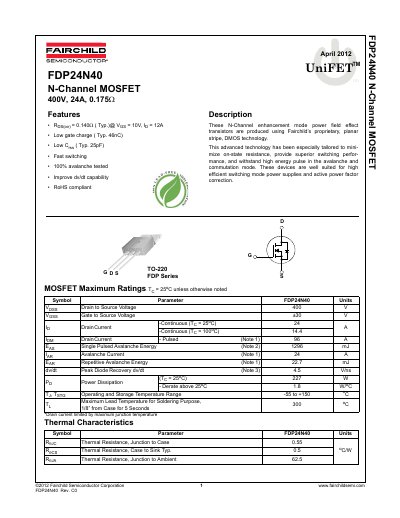

This document is a datasheet for the Fairchild FDP24N40, an N-Channel enhancement mode power field effect transistor. The device utilizes Fairchild's proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance. It is designed for high-efficiency switching mode power supplies and active power factor correction applications.
| Package Type | TO-220 |
|---|
The maximum continuous drain current is 24 A when the temperature is 25°C.
The device has a maximum drain-to-source voltage rating of 400 V.
The operating and storage temperature range is from -55 to +150 °C.
