FDP083N15A_F102 N-Channel PowerTrench® MOSFET is a high performance, low power N-channel MOSFET manufactured by Fairchild Semiconductor. This MOSFET features 8.3mΩ low RDS(on), 6.85mΩ (Typ.)@ VGS = 10V, ID = 75A fast switching speed and low gate charge. It is suitable for DC to DC converters, synchronous rectification for Server/Telecom PSU, battery charger, AC motor drives and Uninterruptible Power Supplies (UPS).

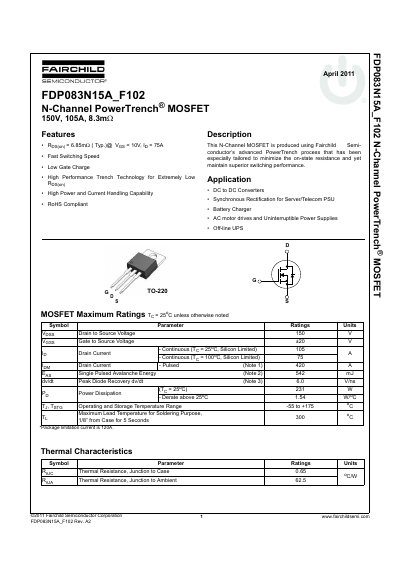

The document describes the Fairchild FDP083N15A, an N-Channel PowerTrench MOSFET designed for high power and current handling. Key features include a low on-state resistance of 6.85mΩ (typical) at Vgs = 10V and Id = 75A, fast switching speed, and RoHS compliance.
The device is intended for applications such as DC to DC converters, synchronous rectification in server/telecom power supplies, battery chargers, AC motor drives, and offline UPS systems. The datasheet provides maximum ratings, electrical characteristics, typical performance curves, and mechanical dimensions.
| Drain to Source Voltage | 150 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 105 A |
| Continuous Drain Current (Tc = 100°C) | 75 A |
| On-Resistance (Typical) | 6.85 mΩ |
| Package Type | TO-220 F102 |
| Operating Temperature Range | -55 to +175 °C |
The device is suitable for DC to DC converters, synchronous rectification for server/telecom PSU, battery chargers, AC motor drives, and offline UPS.
Yes, the datasheet lists RoHS Compliant as one of its features.
