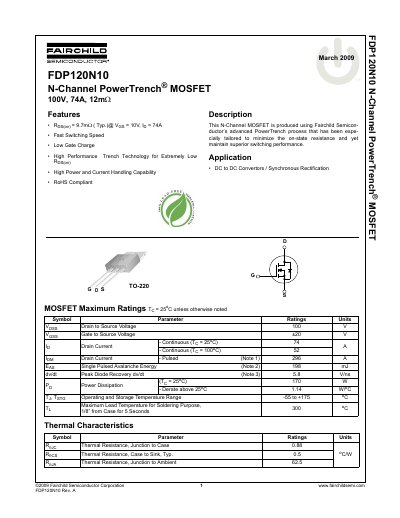

Fairchild FDP120N10 N-Channel MOSFET Datasheet

FDP120N10 N-Channel PowerTrench® MOSFET is a high performance, low on-resistance N-channel MOSFET that can be used for DC-DC converters and synchronous rectification applications. It features low RDS(on), high switching speed, low gate charge and is RoHS compliant.

Brand: Fairchild
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 686 KB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: 23B67572C8B1E078BF0B88C6B01BEFBB
PDF: Fairchild FDP120N10 N-Channel MOSFET Datasheet PDF

About this manual

This document is a technical datasheet for the Fairchild Semiconductor FDP120N10 N-Channel PowerTrench MOSFET. The device features low on-state resistance (12mΩ typical) and high current handling capability, designed for applications such as DC to DC converters and synchronous rectification.

What's inside

Features
Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Performance Characteristics
Package Marking
Mechanical Dimensions

Specifications

Drain to Source Voltage	100 V
Continuous Drain Current (Tj = 25°C)	74 A
On-Resistance (Typical)	12 mΩ
Package Type	TO-220

Frequently asked questions

What is the operating and storage temperature range?

The device operates and stores within a temperature range of -55 to +175 °C.
