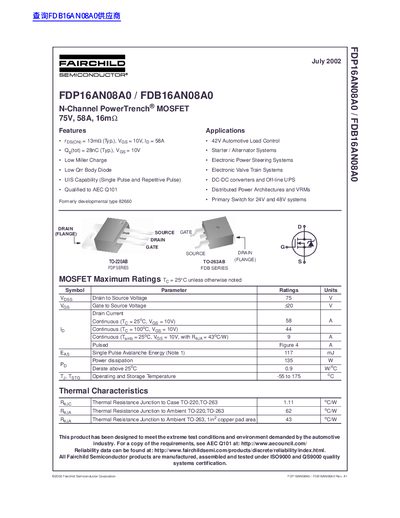

This document is a datasheet for the Fairchild FDP16AN08A0 and FDB16AN08A0 N-Channel PowerTrench MOSFETs. The devices are rated for 75V drain-to-source voltage, 58A continuous drain current, and a typical on-resistance of 16mΩ. They are designed for automotive applications such as load control, starter/alternator systems, and electronic power steering, as well as DC-DC converters and off-line UPS systems. The parts are qualified to AEC Q101 standards.
| Drain to Source Voltage | 75 V |
|---|---|
| Gate to Source Voltage | 42 V |
| Continuous Drain Current (Tj=25°C) | 58 A |
| On-Resistance (Typical) | 16 mΩ |
| Total Gate Charge (Typical) | 28 nC |
| Operating Temperature Range | -55 to 175 °C |
Yes, the product is qualified to AEC Q101 standards.
The maximum rated junction temperature (Tj) is 175°C.
