FDP15N40 / FDPF15N40 N-Channel MOSFET is a N-channel enhancement mode power field effect transistor produced by Fairchild Semiconductor Corporation. This device uses Fairchild's proprietary planar stripe DMOS technology, which has the advantages of low on-state resistance, fast switching and 100% avalanche protection. It is suitable for high-efficiency switched mode power supplies and active power factor correction applications.

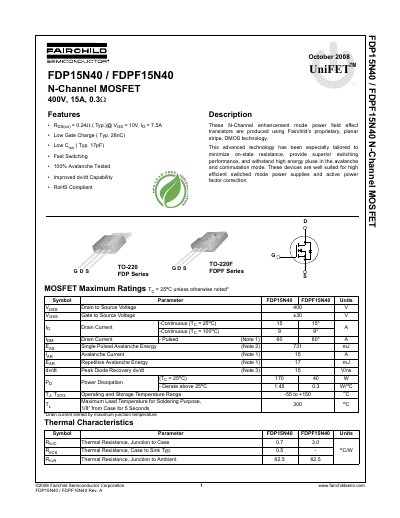

This document is a datasheet for the Fairchild FDP15N40 and FDPF15N40 N-Channel enhancement mode power field effect transistors. These devices utilize Fairchild's proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance. They are designed for high efficiency switched mode power supplies and active power factor correction applications.
The datasheet provides maximum ratings, electrical characteristics, and typical performance characteristics including graphs for on-resistance, capacitance, and safe operating areas. It also includes mechanical dimensions for the TO-220 and TO-220F packages.
| Package Type | TO-220 / TO-220F |
|---|
Yes, the document lists the device as RoHS Compliant.
The maximum continuous drain current is 15 A when the temperature is 25°C.
The maximum drain-to-source voltage rating is 400 V.
The operating and storage temperature range is from -55 to +150 °C.
