FDP085N10A_F102 is a high-performance N-channel MOSFET with RDS(on) = 7.35mΩ ( Typ.)@ VGS = 10V, ID = 96A, fast switching speed and low gate charge, supporting DC to DC converters and synchronous rectification for telecom power applications.

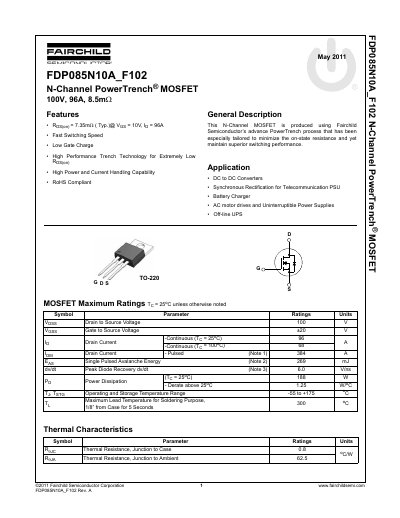

The document describes the Fairchild FDP085N10A, an N-Channel PowerTrench MOSFET produced using Fairchild Semiconductor's advanced process. Key features include low on-state resistance (8.5mΩ), fast switching speed, and high performance trench technology. The device is RoHS compliant and designed for applications such as DC to DC converters, synchronous rectification for telecommunication power supplies, battery chargers, AC motor drives, and uninterruptible power supplies (UPS).
| Drain to Source Voltage | 100 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 96 A |
| On-Resistance | 8.5 mΩ |
| Power Dissipation (Tc = 25°C) | 188 W |
| Operating and Storage Temperature Range | -55 to +175 °C |
| Package Type | TO-220 |
Yes, the document states that the device is RoHS Compliant.
The maximum continuous drain current at 25°C is 96 Amperes.
