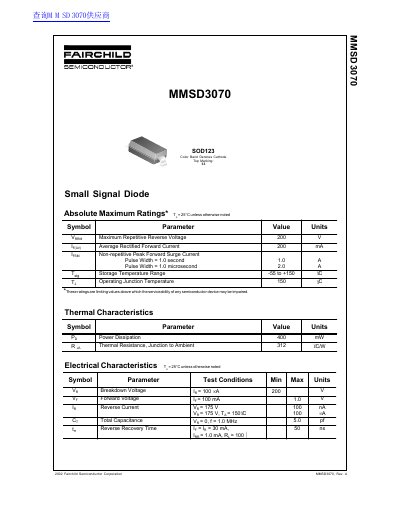

This document provides the absolute maximum ratings, electrical characteristics, and thermal characteristics of the MMSD3070 small signal diode from Fairchild Semiconductor Corporation. The diode has a maximum repetitive reverse voltage of 200V and an average rectified forward current of 200mA. Additionally, the document includes parameters such as power dissipation, thermal resistance, breakdown voltage, forward voltage, reverse current, total capacitance, and reverse recovery time of the product.
This datasheet describes the Fairchild Semiconductor MMSD3070, a small signal diode. The document provides absolute maximum ratings, thermal characteristics, and electrical characteristics for the device.
Key specifications include a maximum repetitive reverse voltage of 200 V and an average rectified forward current of 200 mA. The device operates within a junction temperature range of -55°C to +150°C.
| Non-repetitive Peak Forward Surge Current (1.0us) | 2.0 A |
|---|
The MMSD3070 has a maximum repetitive reverse voltage of 200 V.
The diode can operate with a junction temperature from -55 to +150 degrees Celsius.
The MMSD3070 has a total capacitance of 5.0 pF.
