This document provides information about the absolute maximum ratings and electrical characteristics of the MMSD4148 model product from Fairchild Semiconductor. The product features a compact surface mount package with a power dissipation of 400 milliwatts, high breakdown voltage, and fast switching speed.

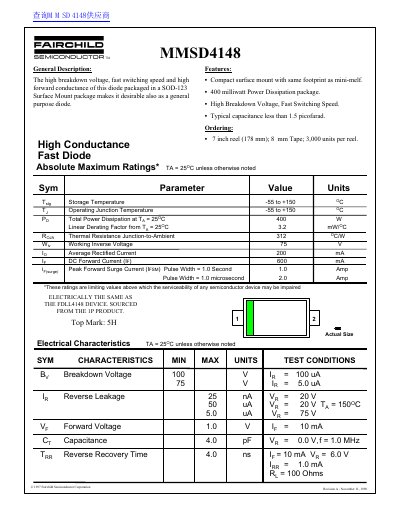

This document is a datasheet for the Fairchild Semiconductor MMSD4148, a high breakdown voltage, fast switching speed diode packaged in a SOD-123 Surface Mount package. It is electrically the same as the FDLL4148 device and is sourced from the 1P product line.
| Package Type | SOD-123 |
|---|---|
| Power Dissipation | 400 mW |
| Capacitance | < 1.5 pF |
| Working Inverse Voltage | 75 V |
| Average Rectified Current | 200 mA |
| Peak Forward Surge Current | 1.0 Amp |
| Breakdown Voltage | 100 V |
| Reverse Recovery Time | 4.0 ns |
The maximum working inverse voltage is 75 V.
