This document describes a surface mount package device with high breakdown voltage and fast switching speed. It has a compact size and high power dissipation capability. In addition, the device has low capacitance and fast reverse recovery time.

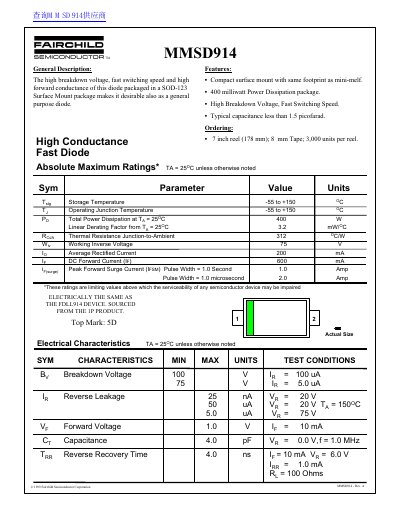

This document describes the Fairchild Semiconductor MMSD914, a high breakdown voltage and fast switching diode packaged in a SOD-123 Surface Mount package. It is designed for general-purpose applications requiring compact surface mount solutions with a footprint compatible with mini-melf packages.
The datasheet provides absolute maximum ratings, electrical characteristics, and package dimensions. Key features include a typical capacitance of less than 1.5 picofarad and a working inverse voltage of 75 V. The device is electrically the same as the FDLL914 device.
| Power Dissipation | 400 mW |
|---|---|
| Working Inverse Voltage | 75 V |
| Average Rectified Current | 200 mA |
| DC Forward Current | 600 mA |
| Peak Forward Surge Current | 1.0 Amp |
| Reverse Leakage | 25 nA |
| Capacitance | 4.0 pF |
| Reverse Recovery Time | 4.0 ns |
The MMSD914 is packaged in a SOD-123 Surface Mount package.
Yes, it is electrically the same as the FDLL914 device.
The typical capacitance is less than 1.5 picofarad.
