Fairchild FDME510PZT P-Channel MOSFET Datasheet

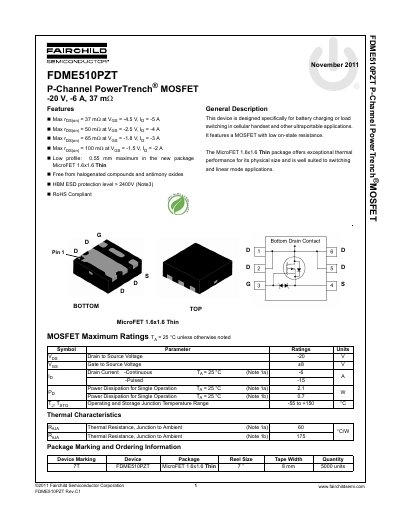

This document describes the features and characteristics of FDME510PZT P-Channel PowerTrench® MOSFET, including maximum on-state resistance, low profile, halogen-free and antimony oxide-free, and HBM ESD protection.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 249 KB
Published: 11 July, 2012
Updated: 28 September, 2023
MD5 checksum: 01D130E065A481B9DF57356C068A2683
PDF: Fairchild FDME510PZT P-Channel MOSFET Datasheet PDF

About this manual

The document describes the Fairchild Semiconductor FDME510PZT, a P-Channel PowerTrench MOSFET designed for battery charging or load switching in cellular handsets and ultraportable applications. It features a low on-state resistance of 37 mΩ at Vgs = -4.5V and Id = -5A.

What's inside

Features
General Description
Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Characteristics
Package Marking and Ordering Information

Specifications

Drain to Source Voltage (Vdss)	-20 V
Gate to Source Voltage (Vgs)	+8 V
On-Resistance (Rds(on))	37 mΩ at Vgs=-4.5V, Id=-5A
Operating Junction Temperature Range	-55 to +150 °C

Frequently asked questions

What applications is this MOSFET designed for?

This device is designed specifically for battery charging or load switching in cellular handset and other ultraportable applications.

Download PDF (249 KB)
