FDMA1023PZ Dual P-Channel PowerTrench® MOSFET is a low-on-state-resistance device designed for battery charge switch applications in cellular handset and other ultra-portable applications.

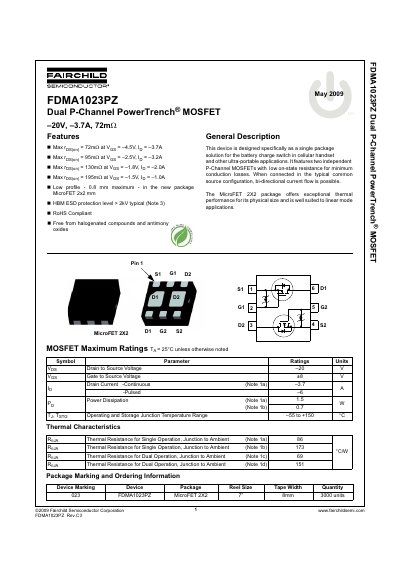

The document describes the Fairchild Semiconductor FDMA1023PZ, a low-profile MicroFET 2x2 package containing two independent P-Channel MOSFETs. It is specifically engineered as a single-package solution for battery charge switches in cellular handsets and other ultra-portable devices.
Key features include bi-directional current flow when connected in a common source configuration and exceptional performance relative to its physical size. The device operates with a maximum drain-to-source voltage of -20V and supports continuous currents up to -3.7A.
| Drain to Source Voltage (VDS) | -20 V |
|---|---|
| Gate to Source Voltage (VGS) | +8 V |
| Continuous Drain Current (ID) | -3.7 A |
| Power Dissipation (PD) | 15 W |
| Operating Junction Temperature Range | -55 to +150 °C |
It is designed specifically as a single package solution for the battery charge switch in cellular handset and other ultra-portable applications.
Yes, the document states that the device is free from halogenated compounds and antimony and is RoHS Compliant.
