FDH055N15A is a N-Channel MOSFET with a rated voltage of 150V and a maximum current of 167A.

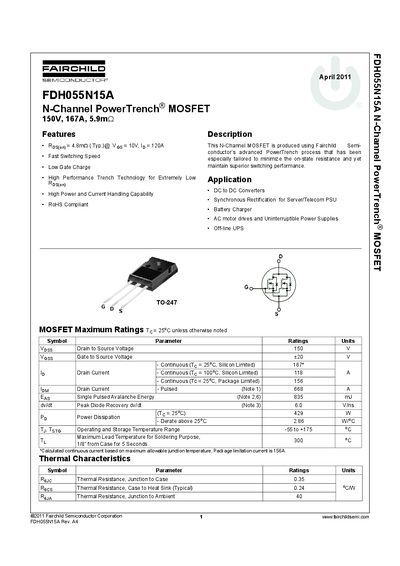

This document is a technical datasheet for the Fairchild Semiconductor FDH055N15A, an N-Channel PowerTrench MOSFET. The device features a 150V drain-to-source voltage rating and a continuous drain current of up to 167A at Tc = 25°C.
| Drain to Source Voltage | 150 V |
|---|---|
| Package Type | TO-247 |
| On-State Resistance (Typ.) | 5.9 mΩ |
The operating and storage temperature range extends up to a maximum of +175 °C.
The thermal resistance, Junction to Case (RθJC), is rated at 0.35 °C/W.
