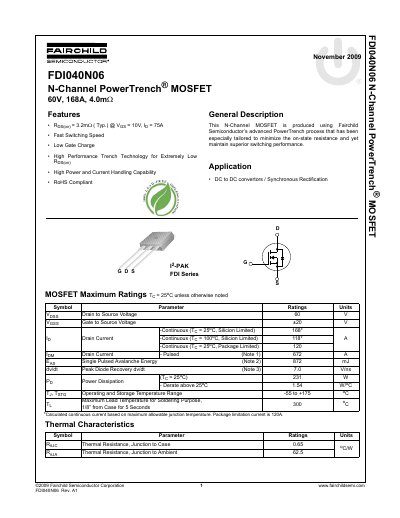

This datasheet lists the features, maximum ratings, thermal characteristics and more information of FDI040N06 N-Channel PowerTrench® MOSFET.
This document is a technical datasheet for the Fairchild Semiconductor FDIO40N06, an N-Channel PowerTrench MOSFET. The device features low on-state resistance (Rds(on)) of 3.2mΩ typical at Vgs = 10V and Id = 75A, along with fast switching speeds suitable for DC to DC converters and synchronous rectification applications.
The datasheet provides comprehensive electrical characteristics including maximum ratings, off and on characteristics, dynamic parameters such as gate charge and capacitance, and switching times. It also includes typical performance curves for on-resistance variation versus temperature and drain current, as well as mechanical dimensions for the TO-262 package.
| Drain to Source Voltage (Vdss) | 60 V |
|---|---|
| Continuous Drain Current (Tc = 25°C, Silicon Limited) | 168 A |
| Static Drain to Source On Resistance (Typical) | 3.2 mΩ |
| Package Type | TO-262 |
| Operating and Storage Temperature Range | -55 to +175 °C |
The device supports a continuous drain current of 168 A when the temperature is 25°C.
The component can operate and be stored in a range from -55 to +175 °C.
The maximum power dissipation is 231 W at a temperature of 25°C.
