FDP038AN06A0 / FDI038AN06A0 is a 60V, 80A, 3.8mΩ N-Channel PowerTrench® MOSFET. Its features include: rDS(ON) = 3.5mΩ (typical), VGS = 10V, ID = 80A; Qg(tot) = 95nC (typical), VGS = 10V; low Miller charge; low QRR body diode; UIS capability (single pulse and repetitive pulse).

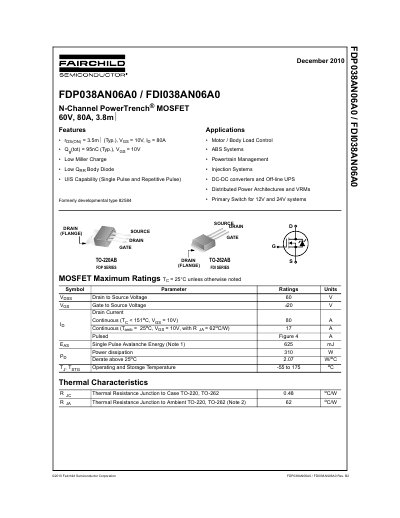

The document is a technical datasheet for the Fairchild FDPO38AN06A0 and FDIO38AN06A0 N-Channel PowerTrench MOSFETs. It specifies key ratings including a 60V drain-to-source voltage, 80A continuous drain current, and a typical on-resistance of 3.8mΩ. The devices are designed for applications such as motor control, ABS systems, and DC-DC converters.
| Drain to Source Voltage | 60 V |
|---|---|
| Continuous Drain Current | 80 A |
| Power Dissipation | 310 W |
| Operating Temperature | -55 to 175 °C |
| Thermal Resistance Junction to Case | 0.48 °C/W |
| Drain to Source On Resistance | 3.8 mΩ |
The component can operate and be stored in temperatures ranging from -55 to 175 °C.
