The FDI030N06 is a N-channel power MOSFET produced by Fairchild Semiconductor Corporation. It features low RDS(on), fast switching speed and low gate charge.

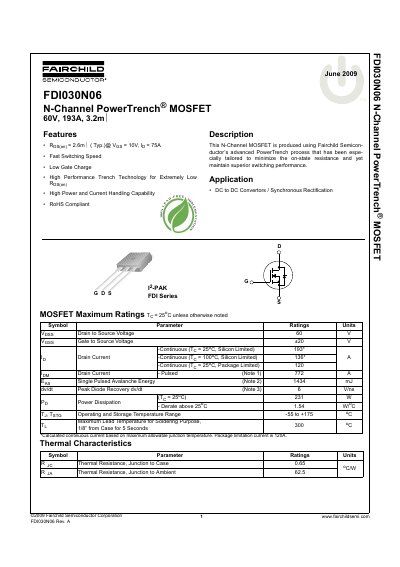

This document is a technical datasheet for the Fairchild Semiconductor FDI030N06, an N-Channel PowerTrench MOSFET. The device operates at 60V with a maximum continuous drain current of 193A and features a typical on-resistance (Rds(on)) of 2.6mΩ.
| Drain to Source Voltage | 60 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 193 A |
| On-Resistance (Typical) | 2.6 mΩ |
| Power Dissipation (Tc = 25°C) | 23 W |
| Operating Temperature Range | -55 to +175 °C |
The component is rated for operation and storage between -55°C and +175°C.
The maximum power dissipation is 23 W when the case temperature is 25°C.
