FDMA7632 is a N-channel power MOSFET from Fairchild Semiconductor. Its maximum drain-source voltage is 30V and maximum current is 9A. The typical on-resistance is 19mΩ at VGS = 10V, ID = 9A and 30mΩ at VGS = 4.5V, ID = 7A. The device is packaged in a new MicroFET 2x2 mm with a height of 0.8mm and is RoHS compliant.
The Fairchild FDMA7632 is a single N-Channel PowerTrench MOSFET designed to provide maximum efficiency and thermal performance for synchronous buck converters. It features a low profile of 0.8 mm maximum and is available in the MicroFET 2x2 mm package. The device is RoHS compliant and free from halogenated compounds and antimony oxides.

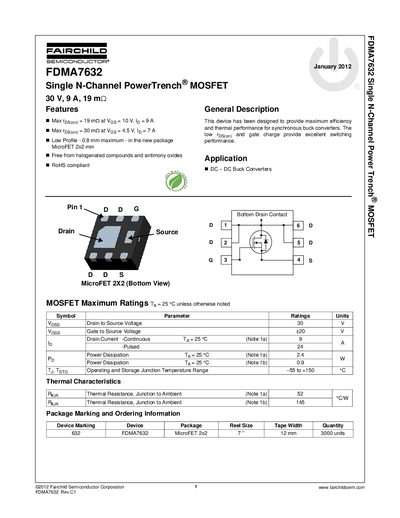

Key specifications include a maximum drain current of 9 A, a drain-to-source voltage rating of 30 V, and a static drain-to-source on-resistance of 19 mQ at Vgs = 10 V and Id = 9 A. The datasheet provides detailed electrical characteristics, typical performance graphs, and dimensional outlines for the package.
| Drain to Source Voltage | 30 V |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
| Static Drain to Source On Resistance | 19 mQ |
| Package Type | MicroFET 2x2 |
The maximum continuous drain current is 9 A at Ta = 25°C.
The on-resistance is 19 mQ at Vgs = 10 V and Id = 9 A.
Yes, the device is RoHS compliant and free from halogenated compounds and antimony oxides.
