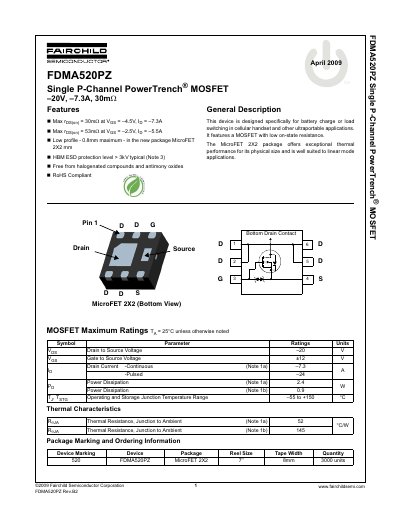

Fairchild FDMA520PZ Single P-Channel MOSFET Datasheet

About this manual

This document is a technical datasheet for the Fairchild Semiconductor FDMA520PZ, a Single P-Channel PowerTrench MOSFET designed specifically for battery charge or load switching in cellular handsets and other ultraportable applications. The device features low on-state resistance and is housed in the MicroFET 2x2 package.

What's inside

• General Description
• MOSFET Maximum Ratings
• Thermal Characteristics
• Package Marking and Ordering Information
• Electrical Characteristics
• Typical Characteristics
• Dimensional Outline and Pad Layout

Frequently asked questions

What is the maximum continuous drain current for this MOSFET?

The maximum continuous drain current is 7.3 A.

What is the maximum power dissipation when mounted on a 2 oz copper pad?

The maximum power dissipation is 24 W.

What is the maximum operating junction temperature?

The maximum operating junction temperature is 150 °C.
