FDMA7630 is a single N-channel PowerTrench® MOSFET from Fairchild Semiconductor Corporation. It features a maximum voltage of 30V, a maximum current of 11A, and a maximum on-resistance of 13mΩ. The device is packaged in a MicroFET 2x2 mm package that is only 0.8mm thick and is RoHS compliant.

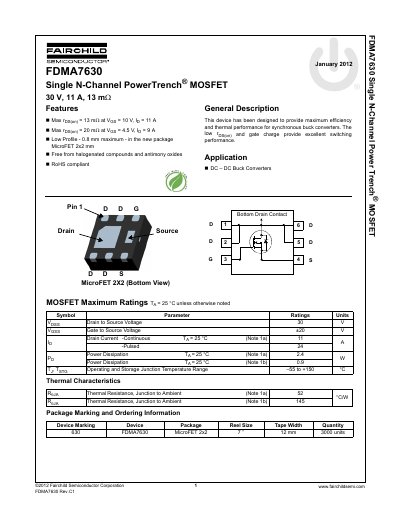

The document describes the Fairchild Semiconductor FDMA7630, an N-Channel PowerTrench MOSFET rated at 30 V and 11 A. It is specifically designed to provide maximum efficiency and thermal performance for synchronous buck converter applications.
Key features include a low profile of 0.8 mm in the MicroFET 2x2 package, RoHS compliance, and free from halogenated compounds. The datasheet provides detailed electrical characteristics, switching parameters, and typical performance curves.
| Drain to Source Voltage | 30 V |
|---|---|
| Continuous Drain Current | 11 A |
| Power Dissipation | 2.4 W |
| Operating Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance (Junction to Ambient) | 52 °C/W |
The maximum continuous drain current at Ta = 25°C is 11 A.
The device uses a MicroFET 2x2 package.
