FDMA410NZ is a single N-channel 1.5V PowerTrench® MOSFET from Fairchild Semiconductor Corporation with a maximum on-resistance of 23 mΩ, rated at 20V and 9.5A.

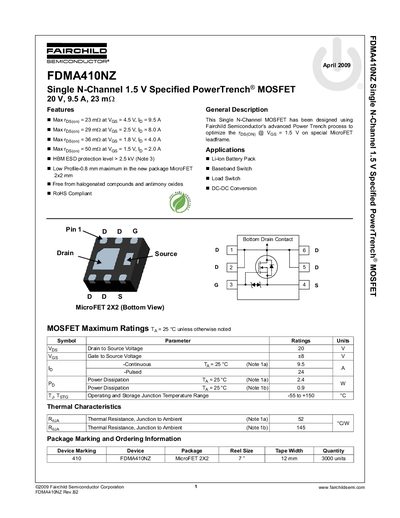

This document is a technical datasheet for the Fairchild Semiconductor FDMA410NZ, a Single N-Channel MOSFET designed using the advanced PowerTrench process on a special MicroFET leadframe. The device features a maximum drain to source voltage of 20V and continuous current ratings up to 9.5A at Ta = 25°C.
| Drain to Source Voltage (VDS) | 20 V |
|---|---|
| Gate to Source Voltage (VGS) | +8 V |
| Continuous Drain Current (ID) | 9.5 A |
| Power Dissipation (Ta = 25°C) | 24 W |
| Operating Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance (Junction to Ambient) | 52 C/W |
The device operates and stores within a junction temperature range of -55 to +150 °C.
