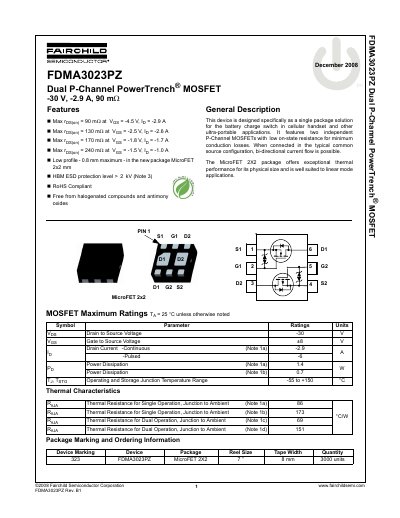

This document describes the features and characteristics of the FDMA3023PZ Dual P-Channel PowerTrench MOSFET, including maximum on-state resistance and low conduction losses.
The FDMA3023PZ is a dual P-Channel MOSFET featuring two independent devices with low on-state resistance, specifically designed as a single package solution for battery charge switches in cellular handsets and other ultra-portable applications. When connected in a common source configuration, the device supports bi-directional current flow.
| Package Type | MicroFET 2X2 |
|---|
The device supports a maximum continuous drain current of -2.9 A.
The maximum power dissipation is 1.4 W when mounted on a 1 in² pad of 2 oz copper.
The device operates and stores within a range of -55 to +150 °C.
