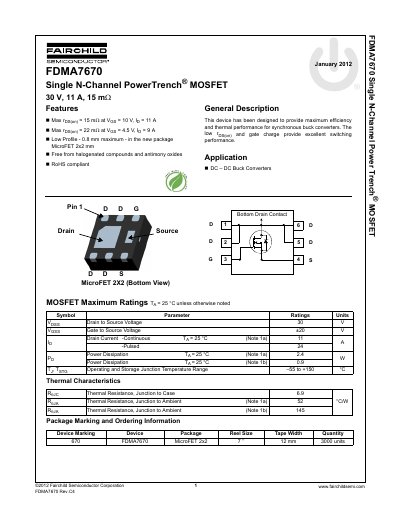

This document describes the features and characteristics of the FDMA7670 single N-channel power MOSFET, including maximum on-resistance, low profile, etc. The product is suitable for DC-DC Buck converters.
The document describes the Fairchild Semiconductor FDMA7670, a Single N-Channel PowerTrench® MOSFET. It is specifically designed to provide maximum efficiency and thermal performance for synchronous buck converter applications.
Key specifications include a maximum drain current of 11 A at Vgs = 10 V with an on-resistance (Rds(on)) of 15 mΩ, and a maximum continuous drain-source diode forward current of 2 A. The device operates within a junction temperature range of -55 to +150 °C.
| Drain to Source Voltage (Vdss) | 30 V |
|---|---|
| On-Resistance (Rds(on)) @ Vgs=10V, Id=11A | 15 mΩ |
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | MicroFET 2x2 |
The device can operate at a maximum junction temperature of +150°C.
