This document describes the features and characteristics of the FDMA7672 Single N-Channel Power Trench MOSFET, including maximum on-resistance, low profile packaging, free from halogenated compounds and antimony oxides, etc.

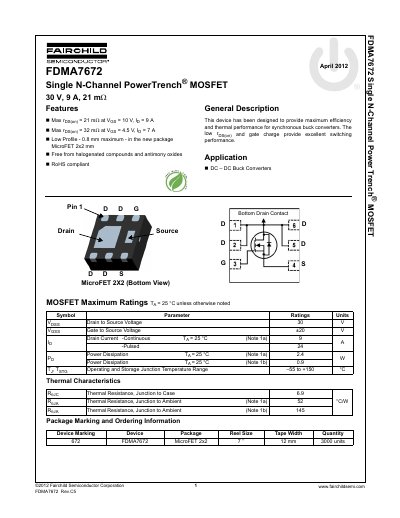

The document describes the Fairchild FDMA7672, a single N-Channel PowerTrench MOSFET designed to provide maximum efficiency and thermal performance for synchronous buck converters. Key features include a low profile of 0.8 mm maximum and compliance with RoHS standards. The device is available in a MicroFET 2x2 package.
| Drain to Source Voltage | 30 V |
|---|---|
| Gate to Source Voltage | +20 V |
| Operating Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance (Junction to Case) | 6.9 °C/W |
| Thermal Resistance (Junction to Ambient) | 52 °C/W |
