The FDMA910PZ is a single P-Channel PowerTrench® MOSFET with a rated voltage of -20V, a maximum current of -9.4A, and a maximum on-resistance of 20mΩ.

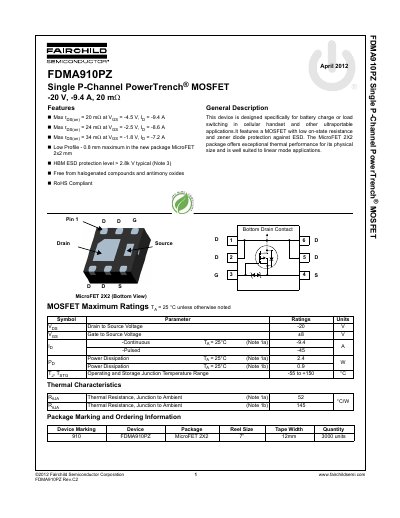

The document describes the Fairchild Semiconductor FDMA910PZ, a Single P-Channel PowerTrench MOSFET designed for battery charge or load switching in cellular handsets and other ultraportable applications. It features low on-state resistance and includes zener diode protection against ESD.
| Drain to Source Voltage (VDS) | -20 V |
|---|---|
| Continuous Drain Current (ID) | -9.4 A |
| Power Dissipation (Ta = 25°C) | 24 W |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Ambient (Note 1a) | 52 °C/W |
| Package Type | MicroFET 2x2 |
