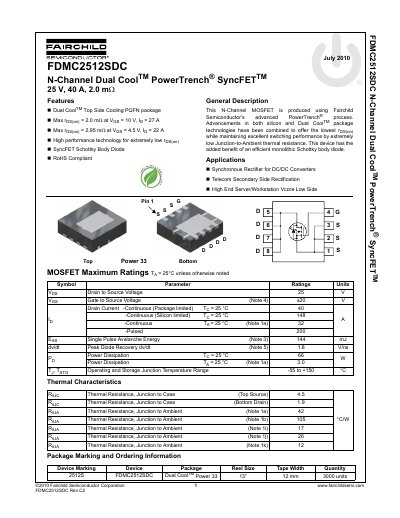

FDMC2512SDC N-Channel Dual CoolTM PowerTrench® SyncFETTM is a low on-resistance N-channel MOSFET that uses Fairchild Semiconductor's advanced PowerTrench® process. It has extremely low Junction-to-Ambient thermal resistance, extremely low rDS(on) and a high efficiency monolithic Schottky body diode.
The document describes the Fairchild Semiconductor FDMC2512SDC, an N-Channel MOSFET produced using PowerTrench technology. It features Dual Cool top-side cooling and includes an efficient monolithic SyncFET Schottky body diode for synchronous rectifier applications.
Key specifications include a maximum drain current of 40A (package limited) at 25°C, a drain-to-source breakdown voltage of 25V, and low on-resistance values ranging from 2.0 mΩ to 2.95 mΩ depending on gate voltage and temperature.
| Drain to Source Voltage (Vdss) | 25 V |
|---|---|
| Continuous Drain Current (Package limited) | 40 A |
| Continuous Drain Current (Silicon limited) | 148 A |
| Power Dissipation (Ta = 25°C) | 3.0 W |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case (Top Source) | 45 °C/W |
| Static Drain to Source On Resistance (Vgs=10V, Id=27A) | 2.0 mΩ |
| Package Type | Dual Cool PowerTrench PQFN |
It is suitable for synchronous rectifiers in DC/DC converters, telecom secondary side rectification, and high-end server/workstation Vcore low-side applications.
Yes, the document lists the device as RoHS Compliant.
