FDD6612A/FDU6612A is a 30V N-Channel PowerTrench MOSFET designed for DC/DC converters and motor drives. Its features are RDS(ON) low, small package, suitable for high current applications.

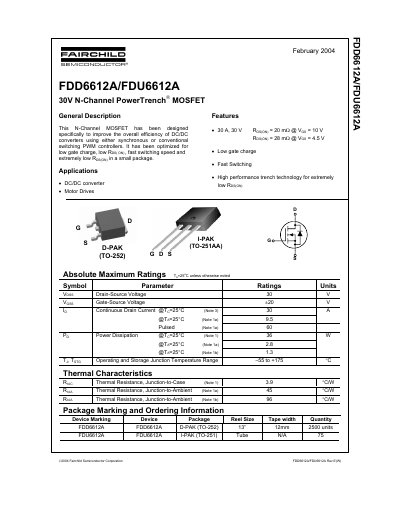

This document is a datasheet for the Fairchild Semiconductor FDD6612A and FDU6612A, which are 30V N-Channel PowerTrench MOSFETs. These devices are designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. Key features include low gate charge, fast switching speed, and extremely low on-resistance in a small package.
| Drain-Source Voltage | 30 V |
|---|---|
| Continuous Drain Current @Tj=25°C | 30 A |
| Power Dissipation @Tc=25°C | 36 W |
| On-Resistance (Vgs=10V) | 20 mΩ |
| Input Capacitance | 660 pF |
The device is designed for use in DC/DC converters and motor drives.
The operating and storage junction temperature range is from -55°C to +175°C.
The typical static drain-source on-resistance is 20 mΩ when Vgs is 10V and Id is 9.5A.
