FDD5614P 60V P-Channel PowerTrench® MOSFET is a high performance power switch device from Fairchild company. It is suitable for power management, DC/DC converter, load switch and other applications.

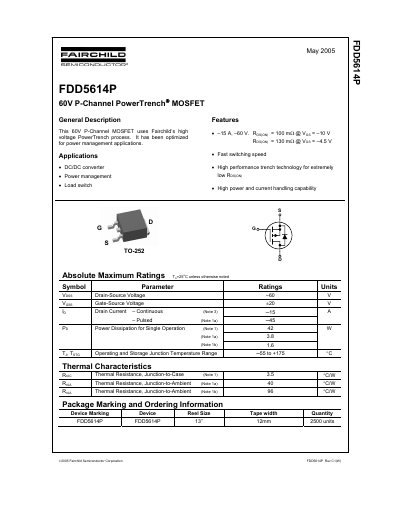

This document is a technical datasheet for the Fairchild Semiconductor FDD5614P, a 60V P-Channel MOSFET utilizing the high-voltage PowerTrench process. The device is specifically optimized for power management applications such as DC/DC converters and load switches.
| Drain-Source Voltage | -60 V |
|---|---|
| Gate-Source Voltage | +20 V |
| Drain Current (Continuous) | -15 A |
| Power Dissipation | 42 W |
| Operating Junction Temperature Range | -55 to +175 C |
| Thermal Resistance (Junction-to-Case) | 3.5 CW |
The maximum continuous drain current is -15 A.
The maximum power dissipation for single operation is 42 W.
The operating and storage junction temperature range is -55 to +175 °C.
