The FDD5670 is an N-Channel MOSFET manufactured by Fairchild Semiconductor Corporation. It features low gate charge, low RDS(ON) and fast switching speed. Its rated voltage is 60V and rated current is 52A.

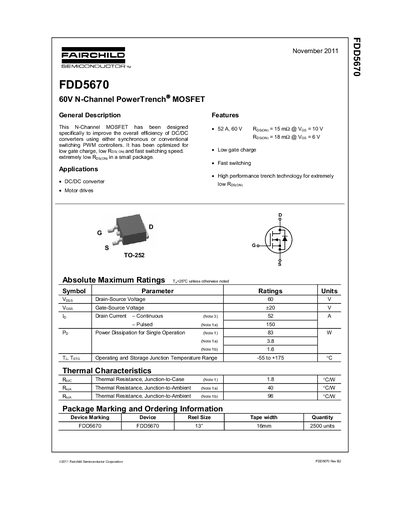

This document is a technical datasheet for the Fairchild Semiconductor FDD5670, an N-Channel MOSFET designed to improve efficiency in DC/DC converters using synchronous or conventional switching PWM controllers. The device features low gate charge, fast switching speed, and extremely low on-resistance (Rds(on)) utilizing PowerTrench technology.
| Drain-Source Voltage | 60 V |
|---|---|
| Continuous Drain Current | 52 A |
| Pulsed Drain Current | 150 A |
| On-Resistance @ Vgs=10V, Id=10A | 12 mΩ Typ. |
| Package Type | TO-252 |
It is designed for DC/DC converters and motor drives.
The operating and storage junction temperature range is -55 to +175 °C.
